Suction Gripper

Atmospheric Engineering: The Road Reflector Suction Prototype

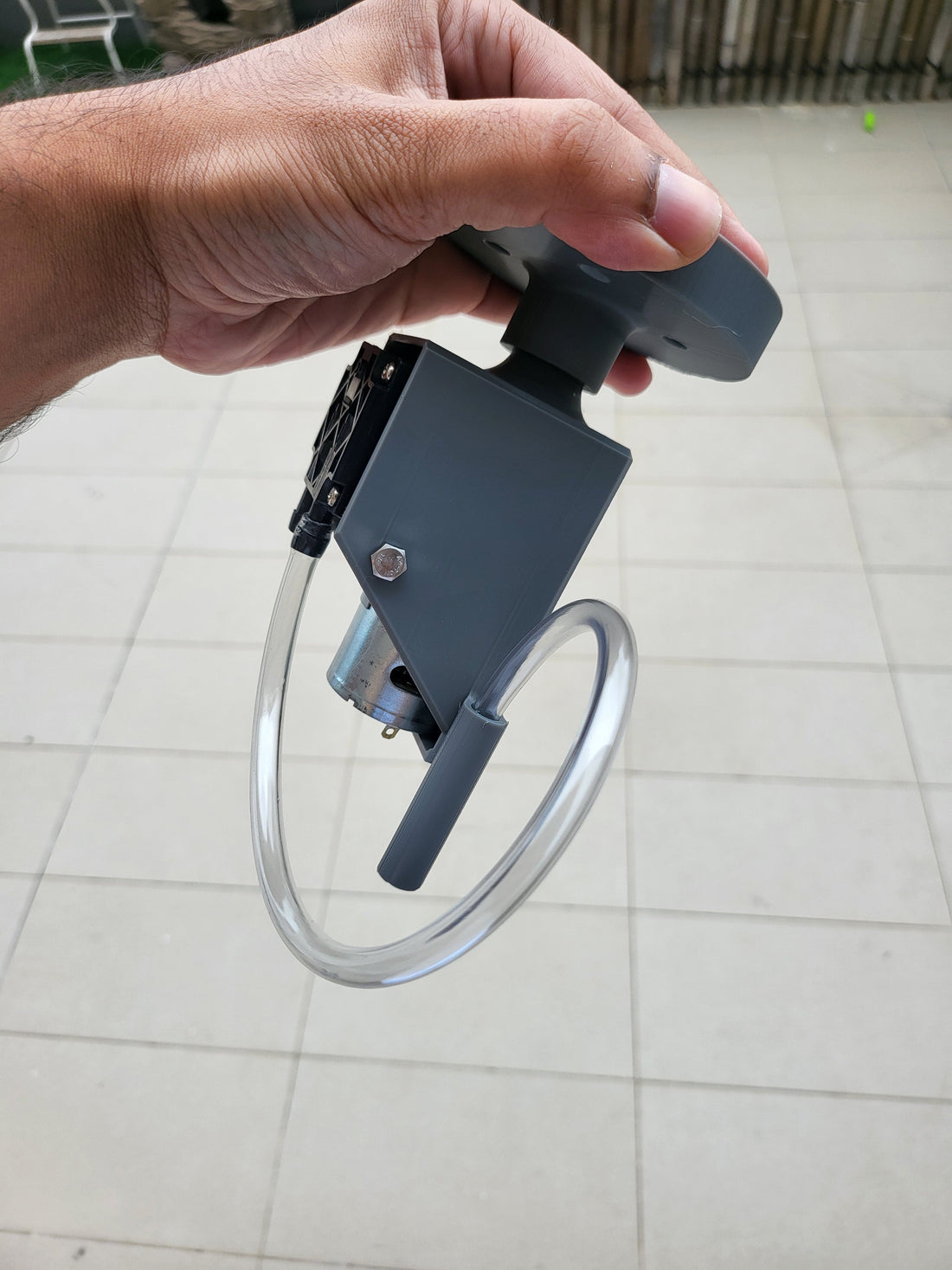

As part of an ambitious university project to automate road maintenance, HA3D was tasked with prototyping a specialized suction-based lifting mechanism. While mechanical grippers are a classic approach, this project explored using vacuum pressure to securely pick up road reflectors with speed and precision.

The Design: Precision Suction Force

The goal was to create a housing that could maintain a perfect airtight seal against uneven road surfaces. This required a complex internal geometry to channel airflow efficiently from the vacuum source to the reflector’s surface.

The HA3D Solution

Turning a high-pressure concept into a functional physical model required a focus on both airtightness and material performance.

Air-Tight Geometry: We utilized high-density 3D printing techniques to ensure the internal chambers were completely sealed, preventing air leaks that would compromise the suction force.

Hybrid Material Approach: We integrated rigid structures for the main body with flexible interfaces to ensure the "pickup head" could conform to the shape of the road reflector.

Rapid Iteration: As one of several competing designs, this 3D-printed prototype allowed the university team to quickly test the "lift capacity" and suction response times in a real-world environment.

Industrial Validation: By printing a high-fidelity model, the team could identify the exact vacuum pressure required before moving into final production.

From Theory to Field Test

At HA3D, we specialize in helping engineering students push the boundaries of what’s possible. By moving away from traditional mechanical clamps and exploring pneumatic suction, this project showcased the power of innovative design combined with precision 3D manufacturing.
