Gripper Mechanism

Engineering Precision: The Linear Gear Road Reflector Gripper

As part of a challenging university engineering project, HA3D was commissioned to develop a functional prototype for a specialized Road Reflector Gripper. The goal was to design a mechanism capable of securely grasping and lifting reflectors directly from the pavement—a task requiring both strength and mechanical accuracy.

The Design: Linear Gear Mechanics

Out of several concepts tested, the Linear Gear System proved to be a standout solution. This mechanism converts rotational motion into smooth, powerful linear movement, allowing the gripper arms to close with consistent pressure and precision.

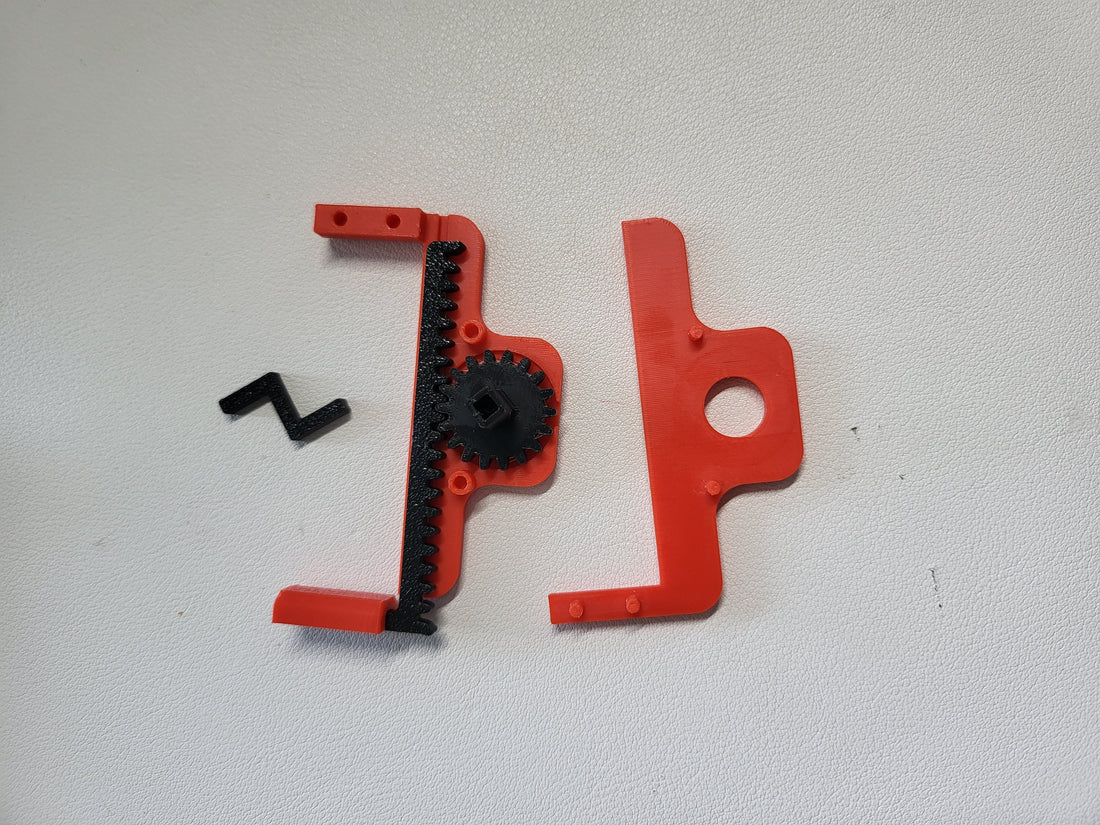

The HA3D Prototype

We brought this engineering concept to life by focusing on the mechanical tolerances required for a successful field test.

Precision Gear Teeth: We utilized high-resolution printing to ensure the linear rack and pinion gears meshed perfectly, preventing any slipping or jamming during operation.

Iterative Prototyping: As one of many designs tested, this 3D-printed model allowed the team to evaluate the gear ratio and gripping force in real-time, facilitating rapid design improvements.

High-Strength Materials: Printed using industrial-grade filaments to ensure the gripper could withstand the mechanical stresses of lifting heavy road hardware.

Functional Testing: The prototype provided a cost-effective way to validate the linear movement before moving toward final metal fabrication.

Advancing Student Innovation

University projects often require moving quickly from a sketch to a working physical model. At HA3D, we specialize in helping students and researchers test multiple iterations of their designs, ensuring that the final "best" version is backed by rigorous physical testing.
